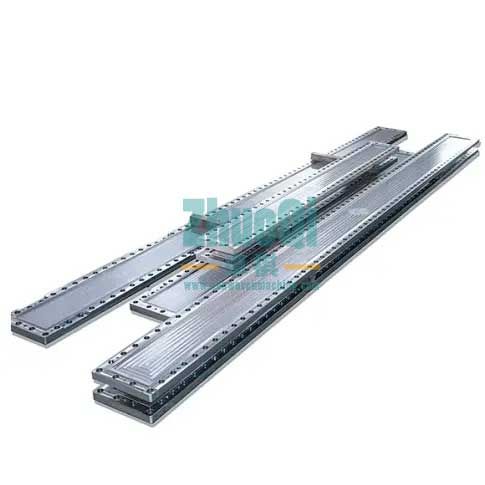

spunbonded spinneret

Produces a variety of high-precision spinnerets with various species and specifications, widely used in synthetic fields such as polyester, polyamide, polypropylene, polyurethane and so on. The company also develops products such as ultra-fine cotton polyester, sheath-core type, sea-island type and non-woven spinnerets and related components, with a strong innovation capability of new products.


ODM/Melt Blown/Chemcial fiber/Spandex Spinneret Specifications
Dia.Of Spinneret Capllaries/DL/D Of Spinneret CapillariesDia.Of Spinneret Capllaries ToleranceLength Of Spinneret Capillaries Tolerance


Precise GradeHeight Precise GradePrecise GradeHeight Precise Grade
0.04-0.1mm1/1-5/1±0.002±0.001±0.01±0.02
0.1-0.5mm1/1-5/1±0.002±0.001±0.01±0.02
0.5-1mm1/1-10/1±0.002±0.001±0.01±0.02
1-2mm1/1-20/1±0.004±0.002±0.02±0.03
Chamfering of guide hole

N5-N7

Guide Hole

N3-N6

Excessive Angle

N2-N6

Capillaries

N1-N3

Mirror Polishing

N1

Grinding

N2-N4

If you want to do something better, you must first grind your sword.

New product´s development and release is the vitality for a company´s continuous development, SSPM Spinneret is such a company which pays great attention to this. It is trying its best to provide its customers with the latest design and stay ahead of other companies of its kind.


Quality is the key to product sales. Based on a lofty faith on quality assurance, the enterprise has imported a complete set of advanced Inspection and experiment facilities, circumspect in each small step, persistent in comprehensive implementation of quality management, to create a situation of quality control with whole-staff involvement and all-level responsibility in a mutual cooperation and mutual monitoring between different posts of different divisions, which has constructed a framework for multi-facetted quality management.


The enterprise attaches importance to each quality enhancement just as paying attention to the enhancement of its holistic image and the company has now been ISO9001 quality system certified.

Production Line


7E7A3956

Spinneret Production Process

Spinneret Production Process

Spinneret Precision Finishing Process

16266047

Spinneret Test Equipment

16266011
