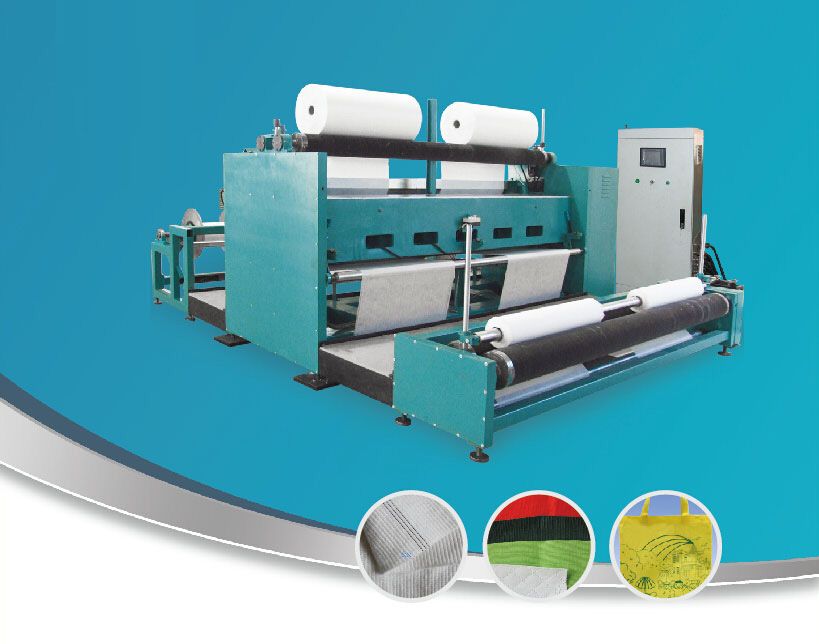

Sewing bond Machine
APPLICATION
The machine is used for the sewing processing of nonwoven fabric, to increase its fastness and toughness, which is widely used in the field of health care, clothing lining.
CHARACTERISTIC
Feed, stretch, warp, take-up are all controlled by servo motor, good synchronization.We can choose 1 or 2 bars. With 2 bars, the fabric has a significantly improved in stability, strength, anti-loose and sliding resistance.
MAIN TECHNICAL SPECIFATIONS
| Needle type | Compound Needle |
| Gauges | E3.5, E5, E7, E9 |
| Working width | 1100mm, 2900 mm |
| Guide bar number | 1, 2 |
| Main drive | Eccentric linkage |
| Speed | 1800 rpm |
| Pattern drive | Pattern disk |
| Yarn let-off device | EBA electronic yarn let-off |
| Feed device | eElectronic feed |
| Fabric take-up | Electronic take-up device |
| Batching device | Electronic batching device |
| Main motor power | 2.2kw, 5.5 kw |

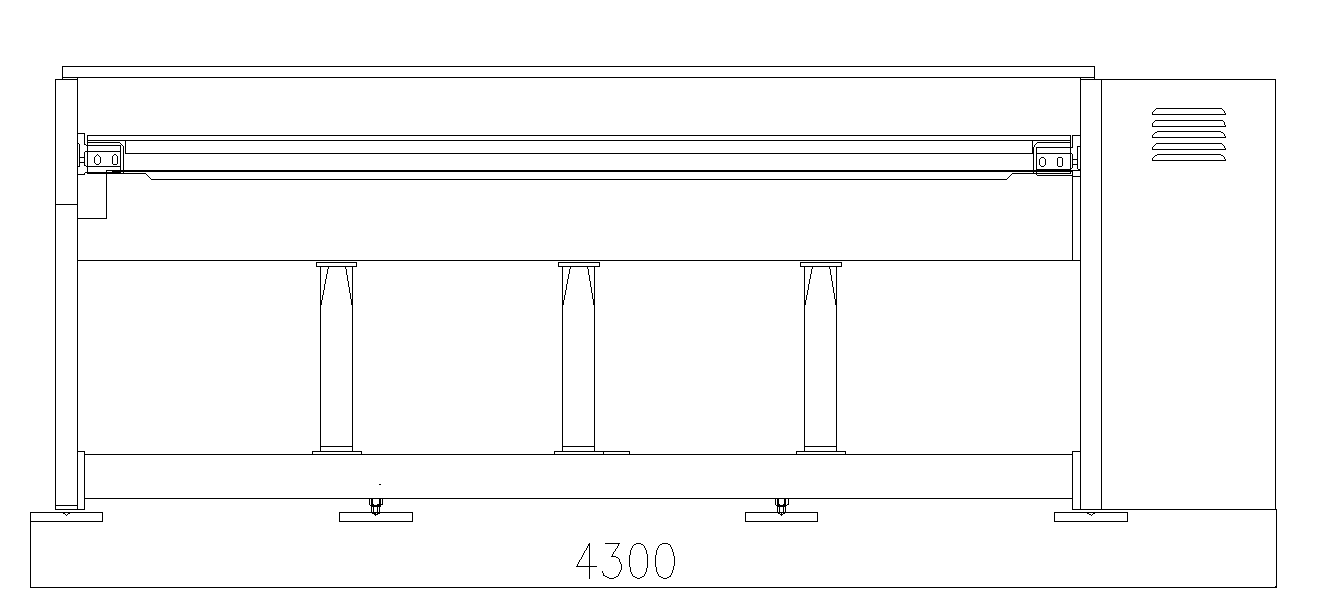

SCHEME OF INSTALLATION
