Condition: New
Automatic Grade: Automatic
Place of Origin: China (Mainland)
Brand Name: ZHUOQI
Model Number: SR2000
Voltage: 220V/380V
Power(W): 180-200KW
Dimension(L*W*H):35000*12000*4500mm(L*W*H)
Weight: 20000kgs-350000kg
Certification: ISO9001
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
| Packaging Details: | NUDE PACKING FOR SINGLE MACHINE,WOODEN CASE FOR SPARE PARTS |
|---|---|
| Delivery Detail: | 150 DAYS |
This line is used to produce hot water soluble bonding embroidery fabric, which is also suitable for making other chemical bond nonwoven fabric.
Machine Process:
OPENER——FEEDING-MACHINE——CARDING-MACHINE——CROSS-LAPPER——AIR-LAID——DIPPING——DRYING-OVEN——DRUM-BAKING—WINDING & CUTTING——CONTROL CENTER
Name: Opener
Original: China
1.Working width: 1000mm.
2.Capacity: 100-160kg/h.
3.Installation power: 4.77kw.
4.Opening cylinder is of card wire roller type.
Name: Feeder
Original: China
1.Working width: 1200mm.
2.Capacity: 100-120kg/h.
3.Installation power: 1.12kw.
Name: Carding machine
Original:China
1.Working width: 1550 mm.
2.Stripping method: roller stripping
3.Carding capacity: 60 kg/h.
4.Installation power: 5.5kw.
Name: Cross lapper
Original: China
1.Web in lattice width: 1700mm.( made of artificial leather)
Web out lattice width: 2600mm.( wood lattice)
2.4Transmission lattice motor: 2.2 KW, frequency drive,
Back and forth lattice motor: 1.5KW, frequency drive.
Name: Air laid machine
Original: China
1.Net forming weight:20-200gsm
2.Output speed:3-15m/min
3.Working width:2400mm
4.Main Cylinder Diameter:450mm
Name: Dipping machine
Original: China
1.Machine width:2500mm
2.Dipping way: Vacuum Suction Method
3.Net transfer: Nylon net

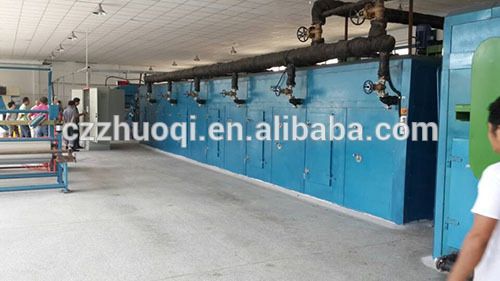

Name:Drying oven
Original:China
1.Oven method: 6 room circulating, Oven temp 140-160 degree
2.Temp control: Manual adjustable, three point display
3.Transfer: Stainless steel net, width 2450mm

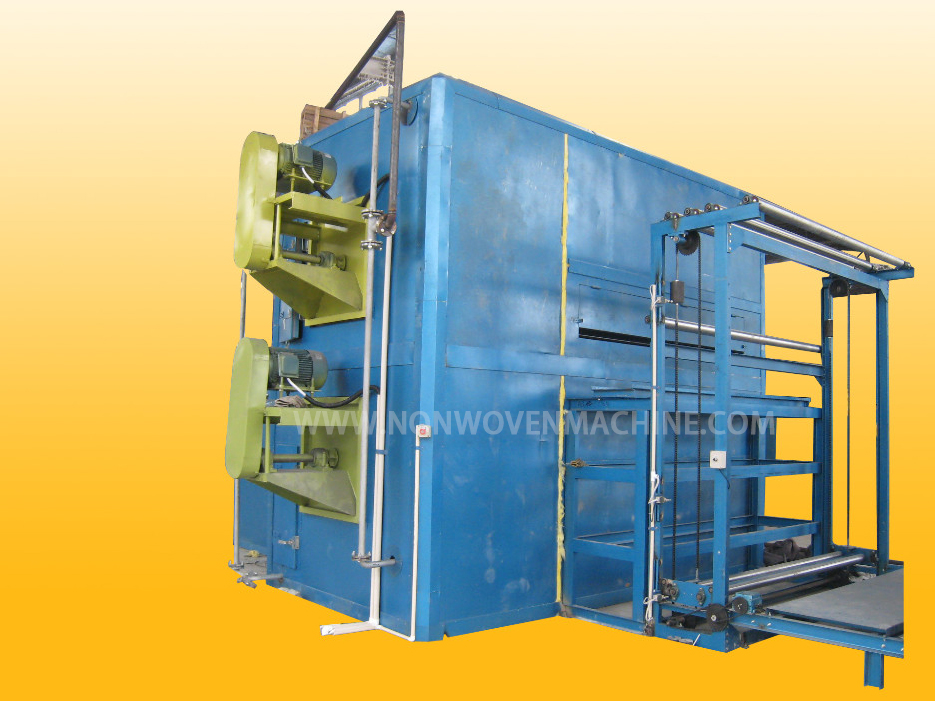

Name:Preforated drum baker
Original:China
1.Baking method: Up and down two layer drum. two sets of circulating fan. power 15kw/set
2.Temp control: Manual adjust, Temp Range. 160-180degree.
Name: Winding machine
Original: China
1.Machine width: 2400mm
2.Winding method: two roller passive winding, anti-wrinkle equipped on rollers
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
