Condition: New
Automatic Grade: Semi-Automatic
Place of Origin: Jiangsu, China (Mainland)
Brand Name: ZHUOQI
Model Number: ZQ2500
Voltage: 220V/380V
Power(W): 24~48kw
Dimension(L*W*H): 21000*25003500mm mm(L*W*H)
Weight: 30 TONS
Certification: ISO9001
Warranty: One Year warranty
After-sales Service Provided: Engineers available to service machinery overseas
Nonwoven machine: blue
| Packaging Details: | Standard packing |
|---|---|
| Delivery Detail: | 30-90days |
1. Finished product: chemical-bonded fabric
2. Product weight: 20-80 g/m2.
3. Working speed: 8-40 m/min.
4. Width of the finished product ：2200mm
5. Raw material: 1.5-2.5D，38-51mm，First grade polyester fiber
6. Heating method: Steam heat up (40X104Kcal Boiler, the buyer Should bear the cost).
7. Installation power for main machines: 45kw.
8. Size of the Machine: Length21000×Width2500mm×Height3500mm
Name: Opner
Original: China
1. WKS-10 Opener：1set
1.1. Working width: 1000mm.
1.2. Capacity: 80-100kg/h.
1.3. Installation power: 4.77kw.
1.4. Opening cylinder is of card wire roller type.
Name: Hopper
Original: China
2.1. Working width: 1200mm.
2.2. Capacity: 80-100kg/h.
2.3. Installation power: 1.12kw.
2.4. Exhausting gas is of web cage structure, volume of hte storaged web is controlled consecutively by the photo electronic switch.
Name: Pre carding machine
Original: China
3.1. Working width:1800mm.
3.2. Stripping method: roller stripping
3.3. Carding capacity: 80-120 kg/h.
3.4. Installation power: 6.05kw.
Name::Cross lapper
Original: China
4.1. Web in lattice width: 1700mm.( made of artificial leather) web out lattice width: 2500mm.( made of artificial leather)
4.2. Transmission lattice motor: 1.5 KW, frequency drive, to-and-from lattice motor: 0.75KW, frequency drive.
Name:Main carding machine
Original: China
5.1. Working width: 2500mm.
5.2. Stripping method: roller stripping
5.3. Carding capacity: 80-120kg/h
5.4. Installation power: 14KW
5.5. Cylinder diameter: Φ1250mm； rotating speed: 0-500rpm adjustable
6.1. Up and down cutter is adjustable, width of the cut web from 1.2-1.6m.
6.2. Air sucking blower: 2.2 KW
7.1 Machine Width: 2500mm
7.2 Grouting Rolling using 200mm rubber rolling, pneumatic presser
Original: China

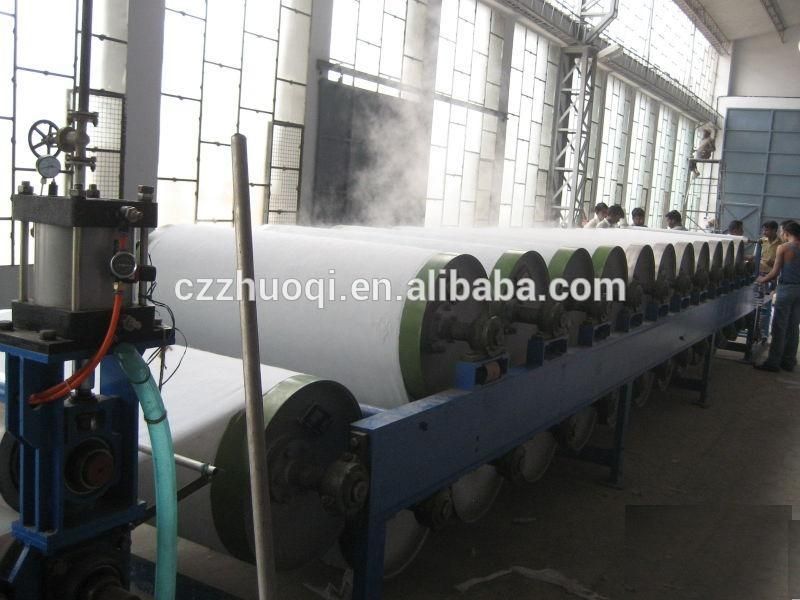

8.1 Machine Width: 2500mm
8.2 24 Stainless Steel Heat transfer oil roll, 10 with teflon coating
8.3 Heating Method: heating with Heat transfer oil or steam, the tube connecting the drying cylinders and the pipes beside the dryer prepared by the manufacturer. The air compressor should be prepared by the buyer.
9.1. Working width: 2400mm.
9.2. Maximum roller diameter: 800mm.
9.3. Automatic counting meter: manually tear off the interlining
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
