Product Application

1. Finished product:Hot calender fabric
2. Product weight: 18-80 g/m2.
3. Working speed: 25-40 m/min.
4.Deviation of product weight：≤±5％
5. Machine width:2500mm(Main Carding Machine)
6. Width of the finished product: ≤ 2100mm
7. Raw material: 1.5-2.5D，38-51mm，First grade polyester fiber and Nylon
8. Heating method: Hot oil heat up (Capacity :90kw)
9. Installation power for main machines: 52kw.
10. Size of the Machine: Length13000×Width11000×Height3500mm

Machine Parts

Name:Opener

Original: China

1. WKS-12 Mixer and Opener： 1set
1.1. Working width: 1200mm.
1.2. Capacity: 100-200kg/h.
1.3. Installation power:6kw.
1.4. Opening cylinder is of card wire roller type.
1.5. Air-laid type fiber feeding blower, outlet is equipped with metal detector

Main Features

Name: Feeder
Original: China
2.1. Working width: 1300mm.
2.2. Capacity: 100-120kg/h.
2.3. Installation power: 1.5kw.
2.4. Exhausting gas is of web cage structure, volume of the storage web is controlled consecutively by the photo electronic switch.

Machine Parts

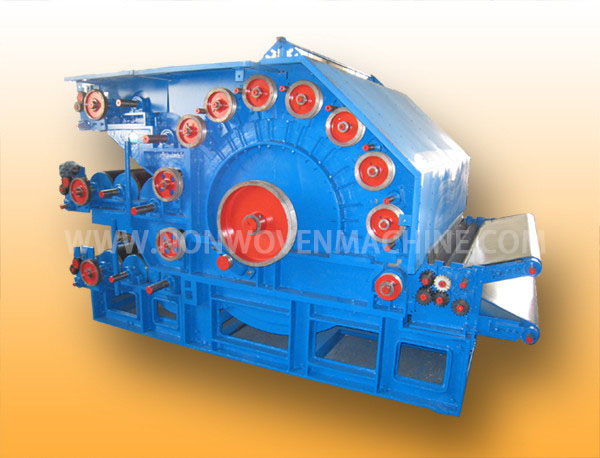

Name: Pre-carding machine
Original: China
3.1. Working width: 1700mm.
3.2. Stripping method: roller stripping
3.3. Carding capacity: 100-160 kg/h.
3.4. Installation power: 12kw.
3.5. Cylinder diameter: Φ1270mm； rotating speed: 0~500rpm, adjustable

Main Features

Name: Cross lapper
Original: China
4.1. Frame materials are steel section and steel plate, thickness 10mm
4.2. Web in lattice width: 1800mm.( made of artificial leather)
web out lattice width: 2600mm.( made of artificial leather)
4.3. Transmission lattice motor:2.2KW, frequency drive
to-and-from lattice motor: 1.5KW, frequency drive

Main Features
Name:
Original: China

5.1. Working width: 2500mm.
5.2. Stripping method: roller stripping
5.3. Carding capacity: 10-1600kg/h
5.4. Installation power: 22.25KW
5.5. Cylinder diameter: Φ1270mm； rotating speed: 0-500rpm adjustable

Main Features
Name: Eduge cutting
Original: China

6.1. Up and down cutter is adjustable, width of the cut web from 1.6-2.2m.
6.2. Air sucking blower: 3 KW

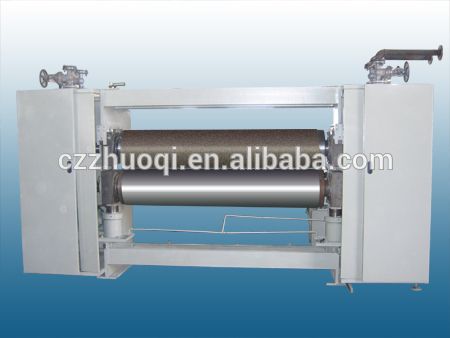

Name: Hot calender
Original: China

7.1. Working width: 2500mm.
7.2. Machine speed: 8~40mm.
7.3. Diameter of the roller: Φ420mm length of the roller: 2400mm. up roller is of carved surface, bottom roller is of smooth surface. Carved designs are according to buyer’s requirement.

Name: Winding machine
Original: China
8.1. Working width: 2400mm.,Maximum roller diameter: 1000mm.
8.2. Single roll make roll by air pressure.
8.3. Automatic counting meter: automatic tear off the interlining by air blade.
8.4. Rolling method: air shaft roller

Name: Furnace with electricity heating up thermo-oil type
Original: China

9.1. Heating up power: 30*2=60kw.                                           9.2. Oil pump power: 2.2*2=4.4kw
